Default Unit Extra Field Settings

The Extra Fields tab is available if it has been defined in the task settings. The options available on the tab also depend on the task settings. See Extra Fields Tab.

Note! These settings have no effect on the Clausion FPM Web Client, because extra field filtering is not available in the Web Client.

Click to enlarge the figure

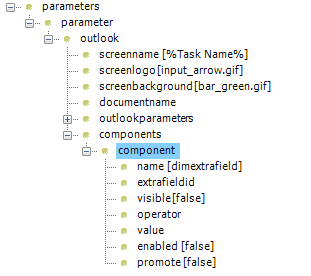

Figure 29: Default unit extra field settings on extra fields tabs settings

Object on screen

Value of ’name’ attribute

Visible

Enabled

Promote

Value

Other child elements

Default Unit Extra Field Settings on Extra Fields Tabs

dimextrafields

1 (false)

1 (false)

-

0-1

<extrafieldid>

<operator>

Elements, attributes and possible values

Click to open/close expanding section<component>

Default unit extra field settings on Extra Fields tabs - path: <outlook><components><component>

Defines the default settings for an extra field on the Extra Fields tabs (see Extra Fields Tab).

Attributes

name: Defines the name of the component.

Possible values:

•dimextrafield

dimid: Defines the dimension for which the default extra field settings are defined.

Possible values:

•0-n
Click to open/close expanding section<extrafieldid>

Default unit extra field settings on Extra Fields tabs - path: <outlook><components><component><extrafieldid>

Defines the extra field for which the settings are defined.

Possible values:

•field ID

Note! If a dimension component with an extra field value has been removed, the extra field default value does not show on the Extra Fields tab. If the dimension component has the settings visible=true and promote=true, the extra field default value shows correctly.
Click to open/close expanding section<operator>

Default unit extra field settings on Extra Fields tabs - path: <outlook><components><component><operator>

Defines the default operator for the extra field.

Possible values:

•The operators available for the extra field in question.
Click to open/close expanding section<value>

Default unit extra field settings on Extra Fields tabs - path: <outlook><components><component><value>

Defines the default value for the component.

Possible values:

•Depends on the operator. For example, two values for 'between', one for 'equals', multiple for 'contains'. Multiple values can be separated with a semicolon (;). For check box type extra fields, the values can be entered using the position numbers of the options (see Dimensions > Unit Extra Fields, the Options list of a check box type field).
