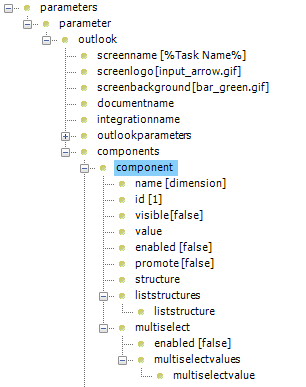

Dimension option - path: <outlook><components><component>

Attributes

id: Defines the ID of the dimension component.

Possible values:

•0-n (n=1-9)

name: Defines the name of the dimension component.

Possible values:

•dimension

Dimension option - path: <outlook><components><component><value>

Defines the default value for the component.

Possible values:

•The IDs of the units defined in the system.

If the value does not match an existing unit ID, the dimension check box is not selected. If a user selects the check box, a message is displayed about the invalid unit. When the message is closed, the first unit from the unit tree is selected by default.

Dimension option - path: <outlook><components><component><multiselect>

Settings for defining whether users can select several units for the dimension. This setting is dimension-specific. The function is available for generation templates with 'generatetype' definitions selected, branch and input. The setting can also be used for the input template calculation and report bundle functions.

%DIMnn CODES% is needed in the template column definitions for passing multiple values. For more information, refer to Clausion Financial Performance Management Input and Report Template Parameters.

Attributes

enabled: Defines whether users can select several units for the input or report template.

Possible values:

•true

•false (default)

Dimension option - path: <outlook><components><component><multiselect><multiselectvalues>

Dimension option - path: <outlook><components><component><multiselect><multiselectvalues><multiselectvalue>

Defines the units that are selected in the Basic Options view of the task.

Note! The value of the 'enabled' attribute of the <multiselect> element must be set as 'true'.

Possible values:

•unit ID

Dimension option - path: <outlook><components><component><structure>

Defines the default hierarchy for the dimension component.

Possible values:

•The IDs of the hierarchies defined in the system

Dimension option - path: <outlook><components><component><liststructures>

Defines the list of hierarchies that users can select for the dimension on the Basic Options tab.

Note! The dimension component for which the <liststructures> settings are added must have an ID (see <component>).

Dimension option - path: <outlook><components><component><liststructures><liststructure>

Possible values:

•The IDs of the hierarchies defined in the system.

If there are several <liststructure> elements and some have invalid values, the invalid values are ignored and only the valid values are shown in the hierarchy list on the Basic Options tab. If no valid values are defined, all hierarchies are shown.
