The Example Templates UI block is available in the User Interface management view in Clausion FPM Desktop Client. To be able to use the example templates, the UI block must be added to the desired user role, and also the correct structure, as described in Overview of Input and Report Template Management, must be available.

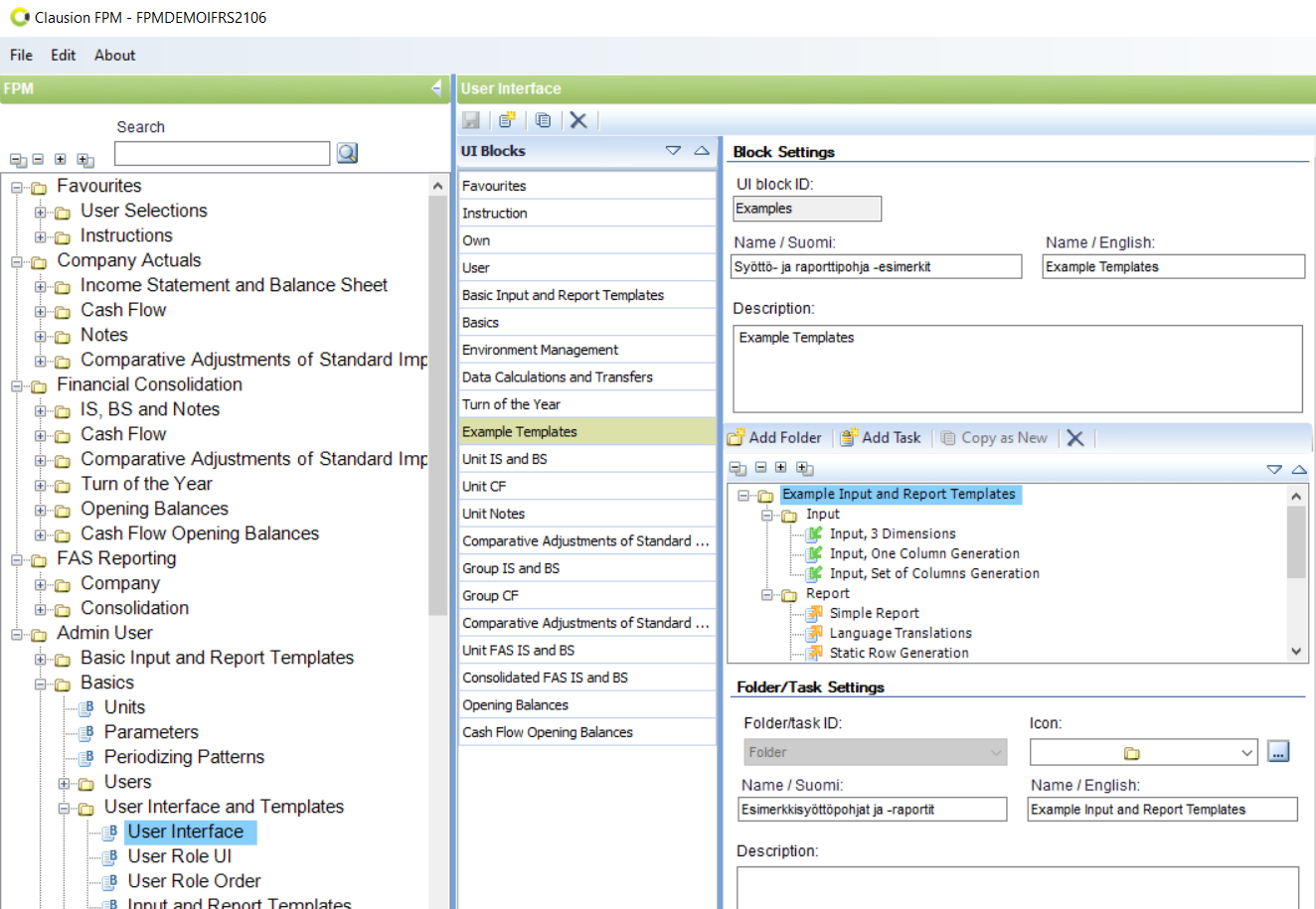

Figure 79: Example Templates default UI block in the Desktop Client
XML File |
Workbook Name |
UI Task ID |
Description |
|---|---|---|---|
Input, 3 Dimensions |
|||
EX_IT101.xml |
EX_IT101.xlsx |
InputSheet10000 |
Used in this manual to illustrate how input template and report template definitions differ. |
Input, One Column Generation |
|||
EX_IT102.xml |
EX_IT102.xlsx |
InputSheet10000 |
Used in this manual to illustrate column generation of a single column. |
Input, Set of Columns Generation |
|||
EX_IT103.xml |
EX_IT103.xlsx |
InputSheet10000 |
Used in this manual to illustrate column generation of a set of columns. |
Simple Report |
|||
EX_RT101.xml |
EX_RT101.xlsx |
ReportSheet |
Used in this manual to illustrate the definitions of basic features of a template. |
Language Translations |
|||
EX_RT102.xml |
EX_RT102.xlsx |
ReportSheet |
Used in this manual to illustrate the use of language translations in templates. |
Static Row Generation |
|||
EX_RT103.xml |
EX_RT103.xlsx |
ReportSheet |
Used in this manual to illustrate generation of rows to a template. Shows combinations of regions (dim01) and accounts. |
Dynamic & Static Row Generation |
|||
EX_RT104.xml |
EX_RT104.xlsx |
ReportSheet |
Used in this manual to illustrate the difference between static and dynamic row generation. Shows combinations of regions (dim01) and accounts. |
Dynamic Row Generation, 2 Dimensions |
|||
EX_RT105.xml |
EX_RT105.xlsx |
ReportSheet |
Used in this manual to illustrate reporting the breakdown of a company's sales by segments (dim00) and regions (dim01). Dynamic row generation over 2 dimensions. |
Row Generation, 3 Dimensions |
|||
EX_RT106.xml |
EX_RT106.xlsx |
ReportSheet |
Used in this manual to illustrate generation of more than 2 dimensions on rows. Shows a set of accounts broken down by segments (dim00) and regions (dim01) of a company. |
Report, Block Headers |
|||
EX_RT107.xml |
EX_RT107.xlsx |
ReportSheet |
Used in this manual to illustrate how to make a generated report easier to read. Shows row generation over 3 dimensions with block headers. |
Report, Multiple Areas |
|||
EX_RT108.xml |
EX_RT108.xlsx |
ReportSheet |
Used in this manual to illustrate how to make a template with multiple areas on the same sheet. |
Report, Multiple Sheets |
|||
EX_RT109.xml |
EX_RT109.xlsx |
ReportSheet |
Used in this manual to illustrate how to make a template with multiple sheets. |
